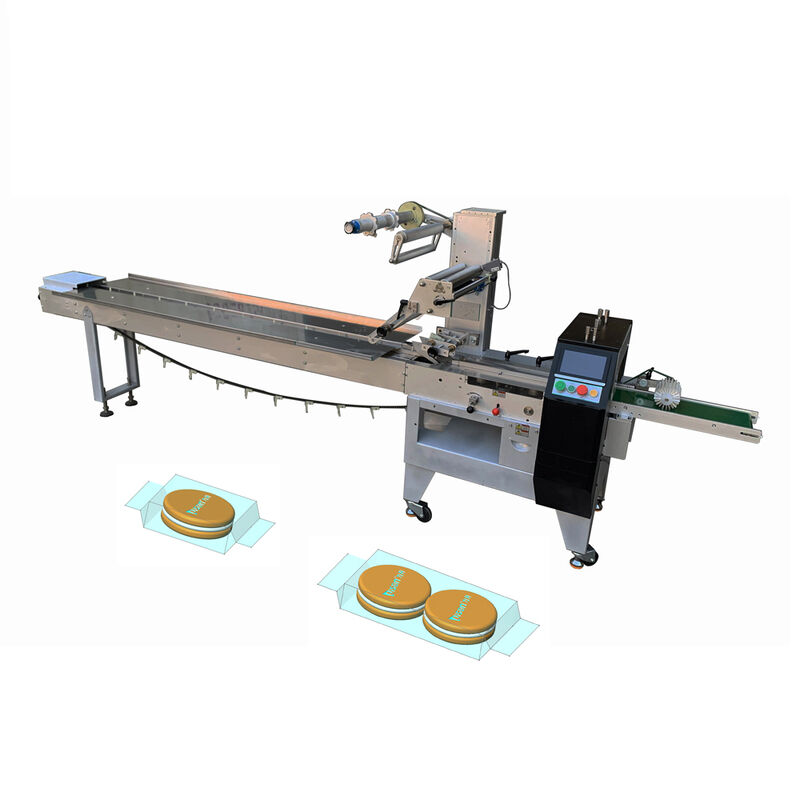

High Speed Flow Packing Machine Soft And Hard Biscuit Wrapping Machine

Brand Name:	LISON
Model Number:	ZB400S
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Certification:

Name:

Flow Packing Machine

Application:

Biscuit Packing

Type:

Forming Filling Sealing Machine

Forming Species:

Bag Moulding

Packaging Material:

Function:

Food Horizontal Packaging

Bag Length:

60-300mm

Bag Width:

35-160mm

Bag Height:

5-60mm

Capacity:

30-300bags/Min.

Weight:

About 550kgs

Voltage:

220V/50Hz

Motor:

Three Sets Servo Motor

After-Sales Service:

Engineers Available To Service Machinery Overseas

HS Code:

8422303090

Highlight:

High Speed Flow Packing Machine

Soft Biscuit Wrapping Machine

Hard Biscuit Wrapping Machine

Product Description

High Speed Soft And Hard Biscuit With Cream Or Without Cream Flow Packing Machine

Product Parameter

Model	ZB400S
Total power	6.5kw
Voltage	220V/50Hz
Dimension	40009301370mm
Net weight	400kg
Capacity	35-300bags/min.
Bag length	60-300mm
Bag width	35-160mm
Bag height	5-60mm

Main Features

1. Display the packaging speed and length automatically, insuring cut-off accuracy.
2. User-friendly Imported PLC interface allowing for multilingual operation and access restriction features.
3. Comprehensive synchronization for date printer ( optional ) and feeding systems.
4. Panasonic Servo motor controlled the cut length and film running. Servo motor realizing the step-less control, dynamic adjustment in operation.
5. High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.
6. Adjustable bag former, could set short and long distance between fork spreader settings, which are convenient for changing product.
7. New type vertical seal heating, can seal at a low temperature and avoid burning film effectively.
8. Simple driving system, reliable working, convenient maintenance.
9. Auto splice device for plastic film. When one film is finished, the other film can be connected full automaticlly.
10. The reasonable and scientific design of nitrogen charging system has perfect penumatic results. Prevent material cutting, effectively.
11. CE Certification. Adopted multiple security protective measures to ensure the safety production.
12. Humanization design, without hygienic angle, is easy to clean.

Packing and Shipping
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
High Speed Flow Packing Machine Soft And Hard Biscuit Wrapping Machine 1

Shipment: Within 30 working days from the date of receipt the down payment.
Usually by sea, but can also according to customer requirements.

Foshan Lison Machinery Co., Limited

Service

We also have pre-sales and after-sales service after the order has been successfully placed.Pre-sales will meet the customer's needs. The customer team can come and inspect the machine equipment and debug the production line until the customer is satisfied.

After the after-sales service, after the customer receives the goods, we can also install the debugging, the machine guarantee a year.

FAQ
1.Q: How is the payment?
A: We accept 40% T/T deposit before production and 60% T/T balance before shipment.
And L/C.

2.Q: How long is your guarantee time?
A: We have a guarantee period of 15 months from the date of shipment.

3.Q: What is the mini order quantity?
A: One set.

5.Q: What information does the quotation require?
A: --What is your product?
