Variable Quantity Sandwich Biscuit Machine PLC Control Automatic Cream Filling Machine Customized

Brand Name:	LISON
Model Number:	LSM221W
MOQ:	1
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Name:

Sandwich Biscuit Machine

Application:

Biscuit Sandwich And Package

Customized:

Customized

After-Sales Service:

Engineers Available To Service Machinery Overseas

Motor:

Use 11 Sets Of Servo Motor

Capacity:

100-1000sandwiches/min.

Packing Speed:

30-140bags/min.

Automatic:

PLC Touch Screen Controlled

Lane:

Double Lane

Flavor:

Single Flavor

Biscuit Shape:

Round/ Square / Rectangle

Biscuit Size:

Diameter 35-65mm

HS Code:

8422303090

Highlight:

Variable Quantity Sandwich Biscuit Machine

PLC Control Automatic Cream Filling Machine

Automatic Cream Filling Machine Customized

Product Description

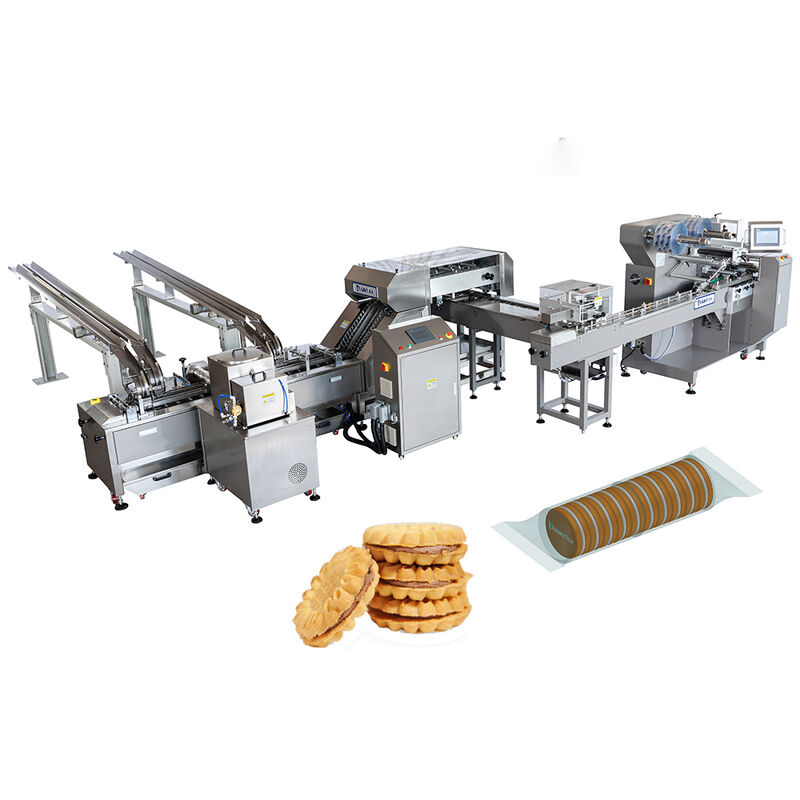

Variable Quantity Cream & Jam Biscuit Sandwiching Machine With On Edge Packaging Machine

Product Introduction

The sandwiches to be counted after filled cream automatically. It is suitable for dry biscuits as well. The quantities of sandwiches or groups of dry biscuits can be set in the PLC, these group of sandwiches or dry biscuits to be caught by a level conveyor, then discharging to the conveyor of on-edge packaging machine.

Product Parameter

Model	LSM221W
Product name	Double Lane Biscuit Sandwiching Machine with On Edge Packaging Line
Total power	5.5kw
Voltage	220V/50Hz
Net weight	About 1500kg
Capacity	100-1000sandwiches/min.
Biscuit size	Round:Φ35-65mm Square & Rectangle:L(40-65)xW(35-65)mm

Model	BOE6
Product name	On-edge packing machine
Output	30-140bags/min
Film width	360mm
Power	8kw,220V/50Hz
Height	30-65mm
Bag length	70-230mm
Films material	Any heat sealing film like paper/PE, OPP/PE, OPP/AL/PE, etc

Product Feature

(1). Cream sandwiches quantities can be vary from 4-20 sandwiches freely

(2). High packaging speed: from 50-140packets/min.after Synchronized

(3). Dual applications: Automatic dry biscuits and sandwiches packaging

(4). PLC for simple operation including machine set-up, hopper controls, speed adjustments

(5). Cream Shapes: can handle a wide variety of shapes, including round, square, rectangle

(6). Removable scrap trays are provided for simple scrap collection and machine cleaning

(7). Easy to operate: Simple adjustments for machine speeds, cream volume.

(8). Sanitary design with stainless steel for food contact parts, including cream stencil and interchange faster

(9). Separating cream holding tank and feeding system

(10). No biscuit no cream system

(11). Stainless steel gear pump, connection tubes between cream hopper and stencil are jacket design.

(12). Every cream hopper with independent motor and reducer

(13).Mobile cream hopper can cleaning while finish working separately

Detailed Images

Cream filling	Automatic counting

Automatic loading	Crossing infeed

Packing inlet	Ready package

FAQ

1.Q: Are you a manufacturer?
A: Yes, we are a biscuit sandwich machine and packing machine manufacturer in China.

2.Q: How is the payment?
A: We accept 40% T/T deposit before production and 60% T/T balance before shipment.
And L/C also acceptable.

3.Q: How long is your guarantee time?
A: We have a guarantee period of 15 months from the date of shipment.

4.Q: What is the mini order quantity?
A: One set.

5.Q: What information does the quotation require?
A: --What kind of biscuit do you make? Pictures of your biscuit if you have.
--Which production capacity do you prefer?

6.Q: What is the delivery time for the machine?
A: Within 50 working days afer received the deposit or L/C.
